The PDR IR Rework Stations are high-powered SMD/BGA rework stations heating with IR, both top and bottom. Using PDR's Focused IR component heating, with powerful Quartz IR PCB preheaters, they are designed to rework all SMDs / BGAs on small to extra-large PCB assemblies.

The rework station is tool-free, gas-free, instantly/precisely controllable, clean, modular, upgradeable and produces 100% yield BGA rework without any complications. It provides the extremely high levels of profiling and process control necessary for the effective rework of even the most advanced packages, including SMDs, BGAs, CSPs, QFNs, Flipchips and is ready for 0201 and lead-free applications. The station is well specified yet can be easily configured to your exact requirements, with a good range of advanced features to choose from, allowing the operator to quickly and safely rework all types of components without overheating the component, adjacents or the PCB. It uses all the proven attributes of PDR’s Focused IR technology, first introduced in 1987 and now used worldwide by over 4000 customers worldwide.

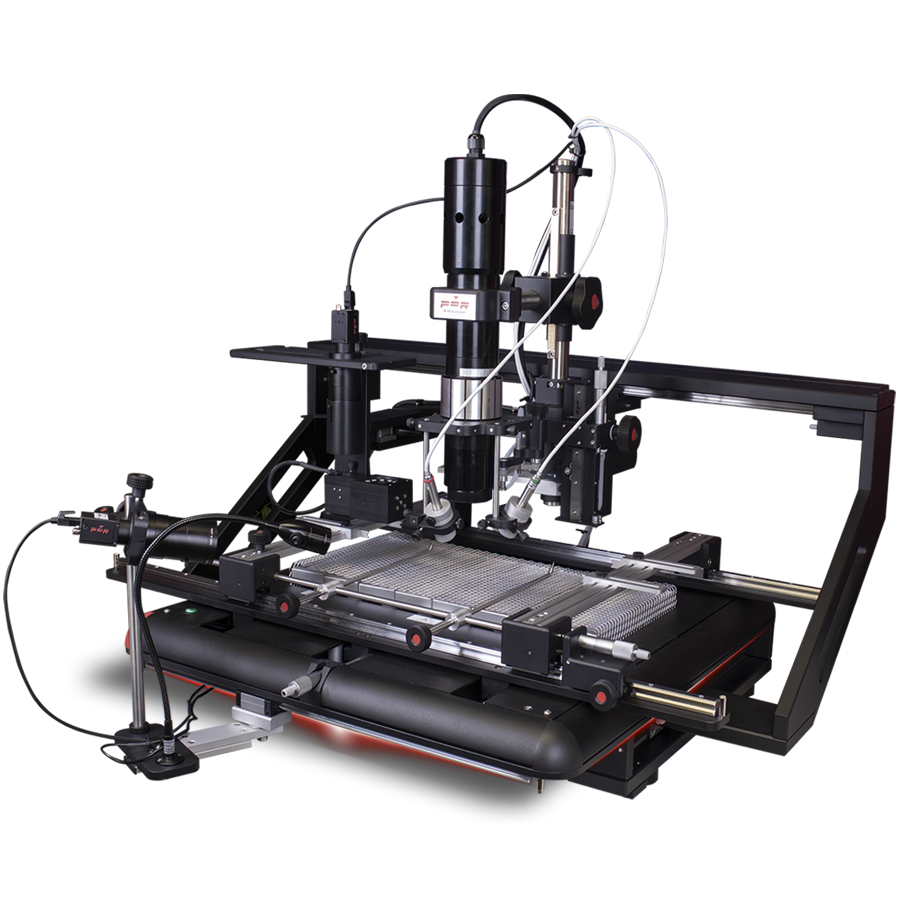

PDR IR-E6

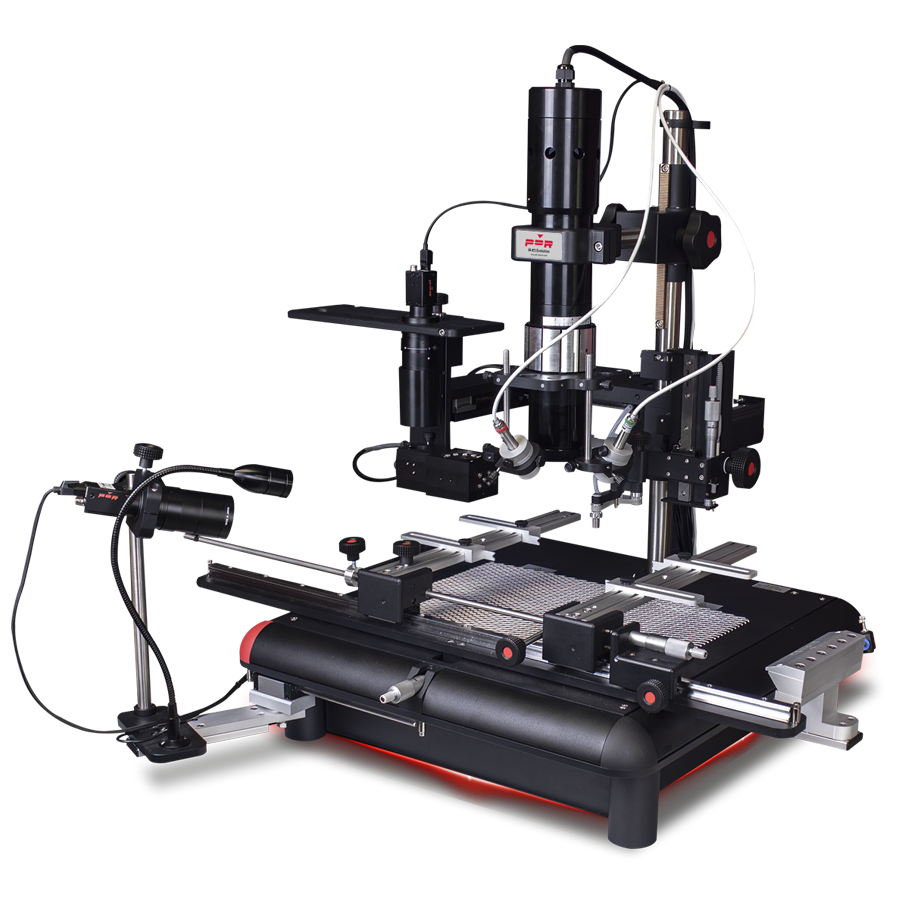

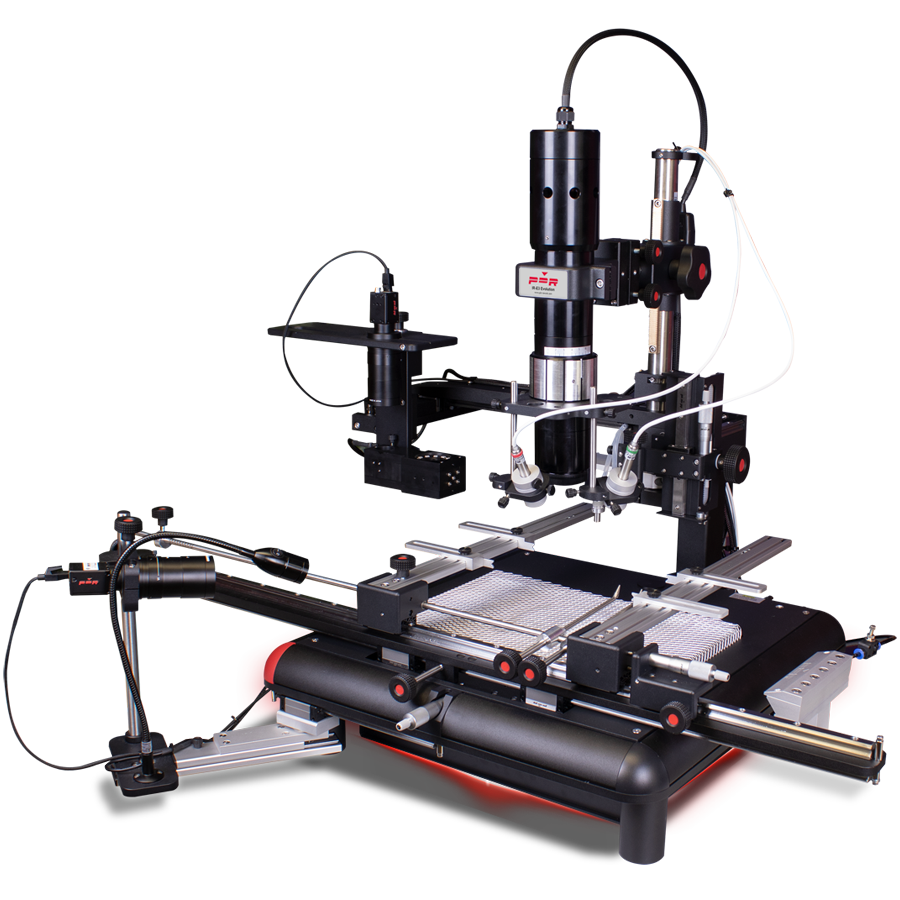

PDR IR-E3
PDR IR-D3
PDR IR-C3
