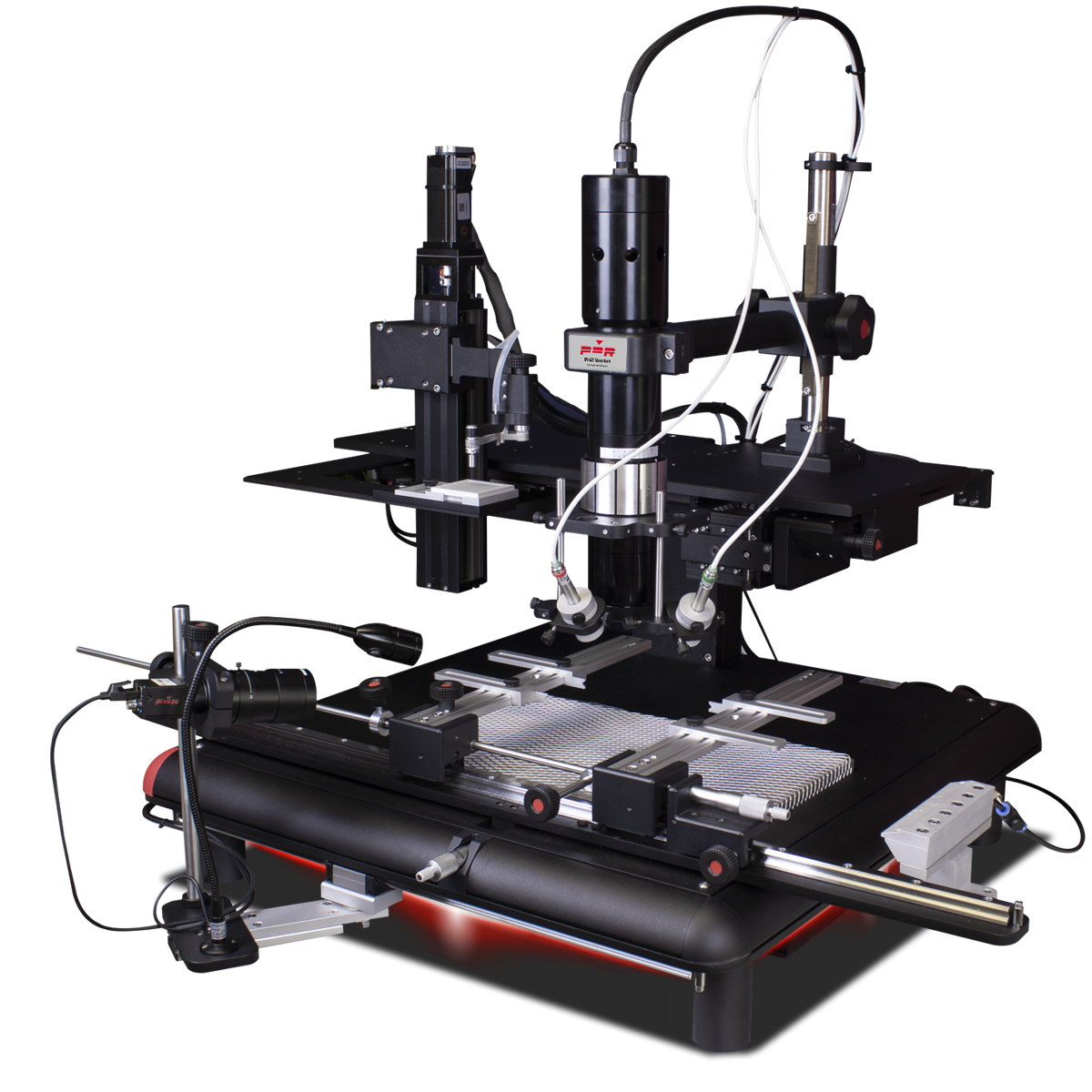

PDR IR-Q3

Semi-Automatic Assisted Rework

Advanced Focused IR component heating
Automatic Component Removal and Placement
Quartz IR PCB preheating with up to 3 zones
2” Split Beam prism system for simultaneous PCB/component viewing
Split Beam prism system for simultaneous PCB/component viewing
Precision Components Pick and Placement up to 5um
Precision PCB handling
Component Nest/Flux Application Facility
Closed Loop Non-Contact Temperature Sensing
Advanced Automatic Thermal Process Control
Reflow Process Observation Camera
PCB Forced Air Cooling

Request Pricing and Information

Technical Data

Bench Area: 1400mm (w) x 600mm (d)
Weight: 75kg
Warranty: 2 years
Voltage Frequency: 208-240 volts 50/60Hz, up to 3.5KW
Top Heater Power: 150W Focused Infrared up to Ø70mm Spot
PCB Preheater Power: 3250W Dark IR
PCB Preheater Heating Area Size: 14.1 x 9.4”/360 x 240mm
Number of PCB Preheater Zones: 3 Zones
Spot Size Included: F700 (Ø 25-70mm), F200 (Ø 10-28mm)
Component Placement: 2” Automatic Split Beam Prism Alignment
Placement Accuracy: Up to 10um
Component Temperature Sensing: Non-Contact IR Sensor
PCB Temperature Sensing: Non-Contact IR Sensor
Max PCB Size: 12 x 18”/300 x 450mm
Max Component Size: 2.1 x 2.1”/55 x 55mm
Min Component Size: 2 x 2mm
Reworkable Area: 10 x 15.9”/254 x 406mm
Number of TC Channels: 4
Operating Software: PDR’s Thermoactive Software Suite suitable for Windows 10+

Applications

Desoldering, placement and soldering of all types of surface-mounted devices (SMD)
BGA, QFN, LED, CSP, 0201, 01005

Accessories

PDR Lens Attachments

AC-F400

F400 (Ø12 - 35mm spot size)

Spares Kits

AC02009	Consumables kit (lamp+socket, gel flux, roll 25mm black tape, vac cup, springs, O rings)
AC02008	Consumables kit (lamp+socket, gel flux x 2, roll 25mm black tape, vac cup, springs, O rings, Lens No1, Cold Mirror)

Solderpaste Print Part System

PDRPP01	Print Part System
PDRPP02	Print Part System Additional Stencil

PDR Reball Kit

PDRRB01	PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
PDRB02	PDR BGA Reball Additional Component Set

Other

SP05029	Laser Alignment Tool
SC020	Controller & Sensor Calibration Check Kit
SP05017	PCB Sensor Contact Probe
SP06008	Additional Board Support Asssembly
