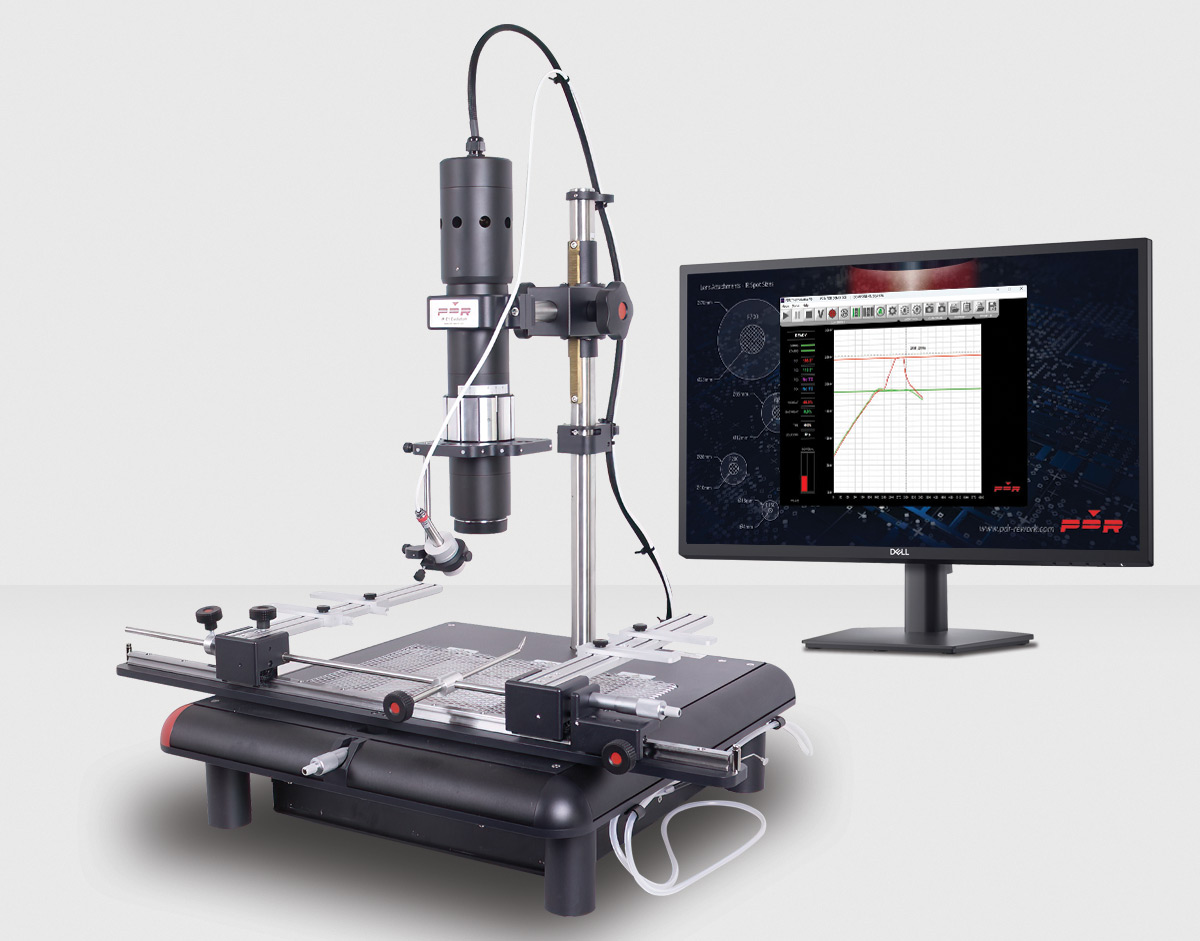

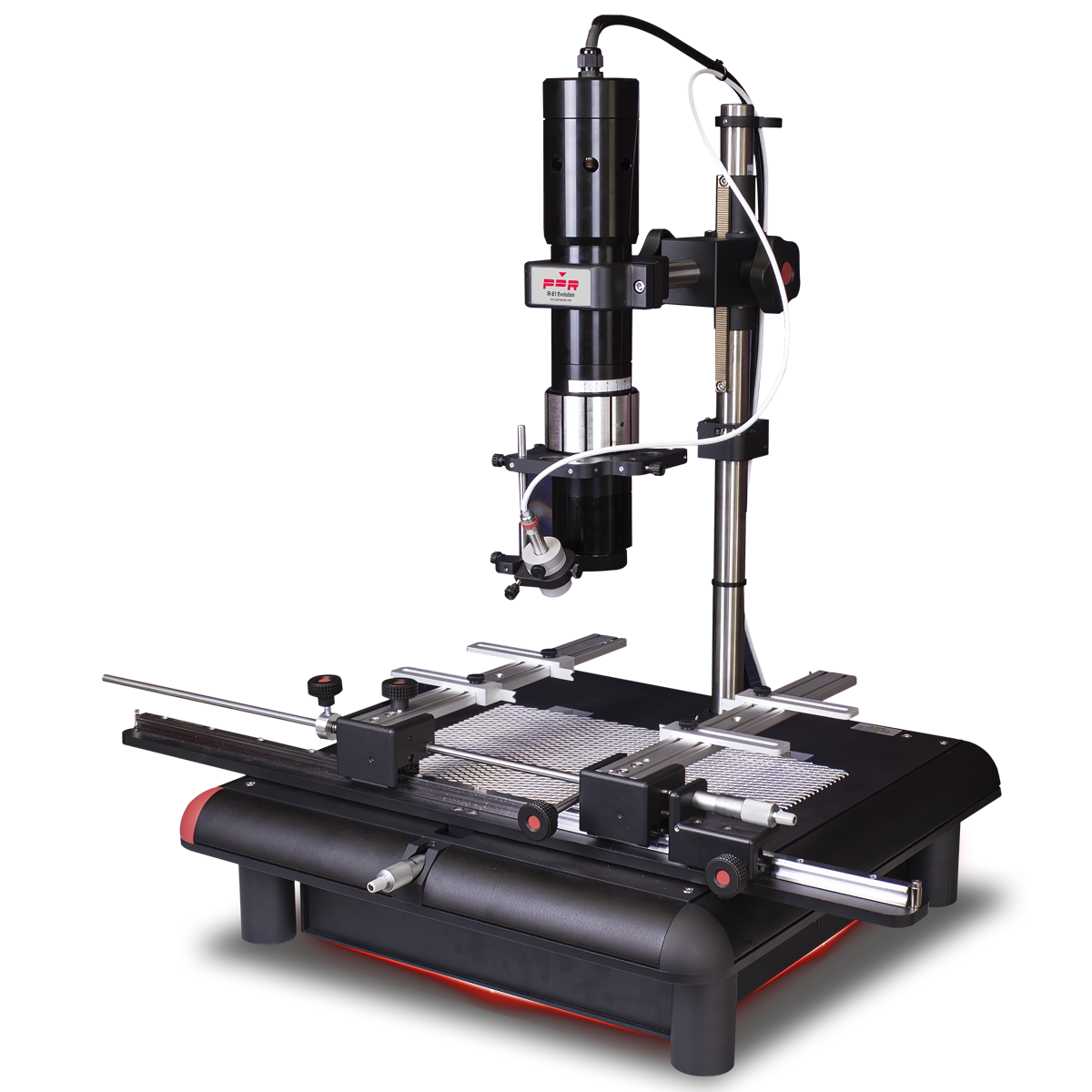

PDR IR-E1

Entry-Level SMD/BGA Rework Station

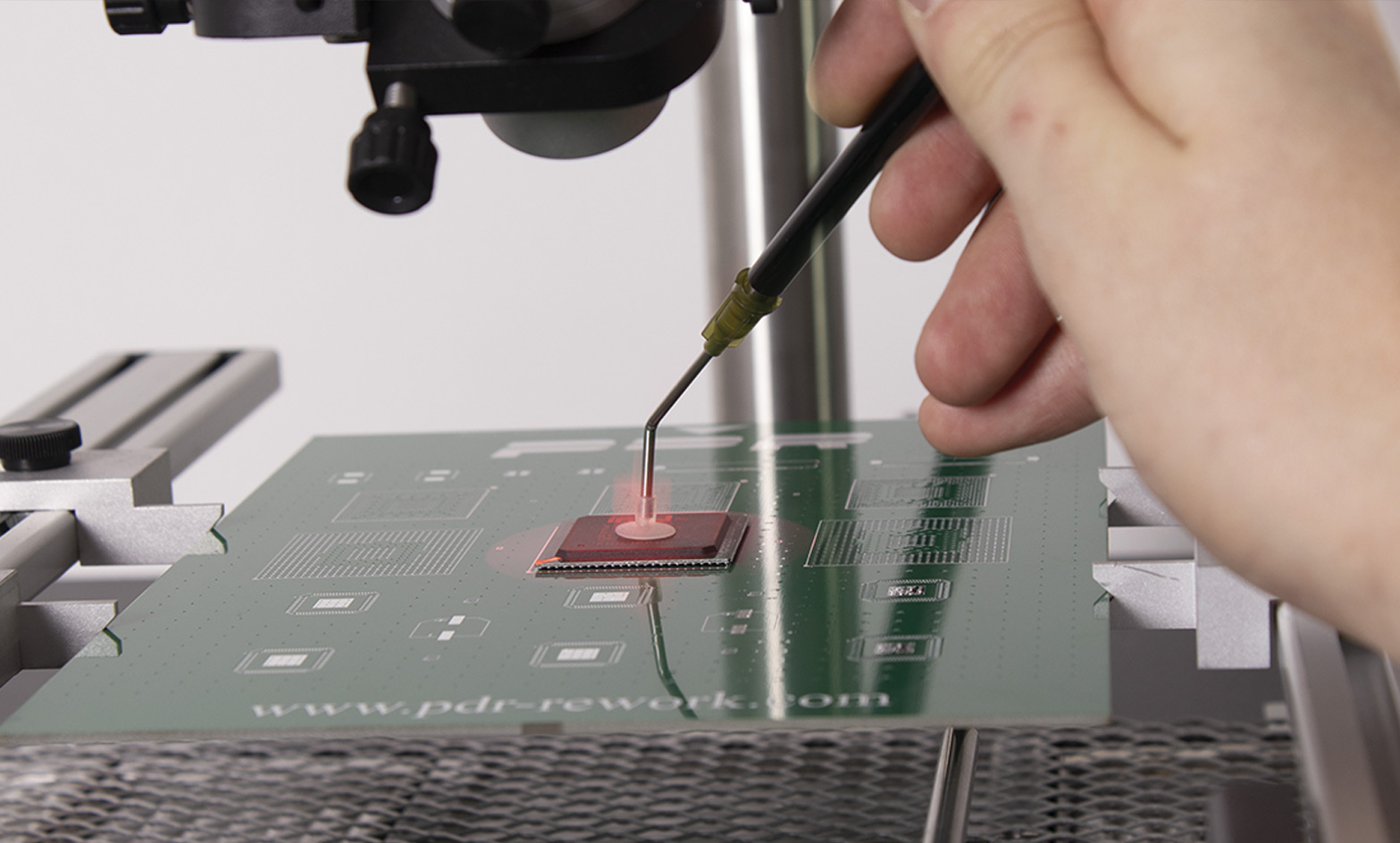

Advanced Focused IR component heating
Quartz IR PCB preheating

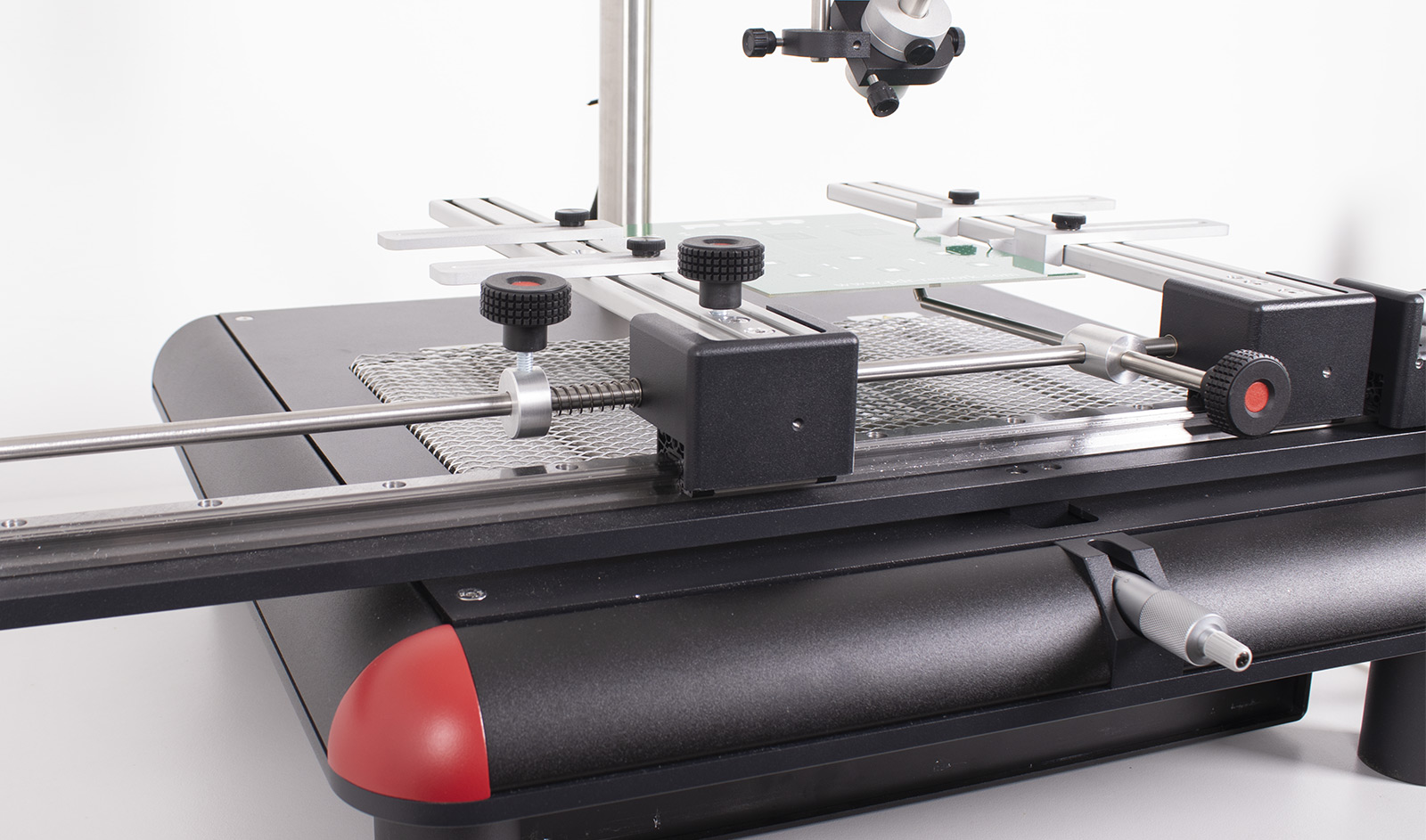

Bench Mounted Workholder
Closed Loop Non-Contact Temperature Sensing
Advanced Automatic Thermal Process Control
Handheld Suction Wand

Request A Quotation

Technical Data

Bench Area: 1200mm (w) x 600mm (d)
Weight: 45kg
Warranty: 2 years
Voltage Frequency: 208-240 volts 50/60Hz
Top Heater Power: 150W Focused Infrared up to Ø70mm Spot
PCB Preheater Power: 2250W Dark IR
PCB Preheater Heating Area Size: 240x240mm
Number of PCB Preheater Zones: 1
Spot Size Included: F700 (Ø 25-70mm)
Component Temperature Sensing: Non-Contact IR Sensor
PCB Temperature Sensing: Contact Probe
Max PCB Size: 12”/300mm
Max Component Size: 55x55mm
Min Component Size: 01005
Number of TC Channels: 4

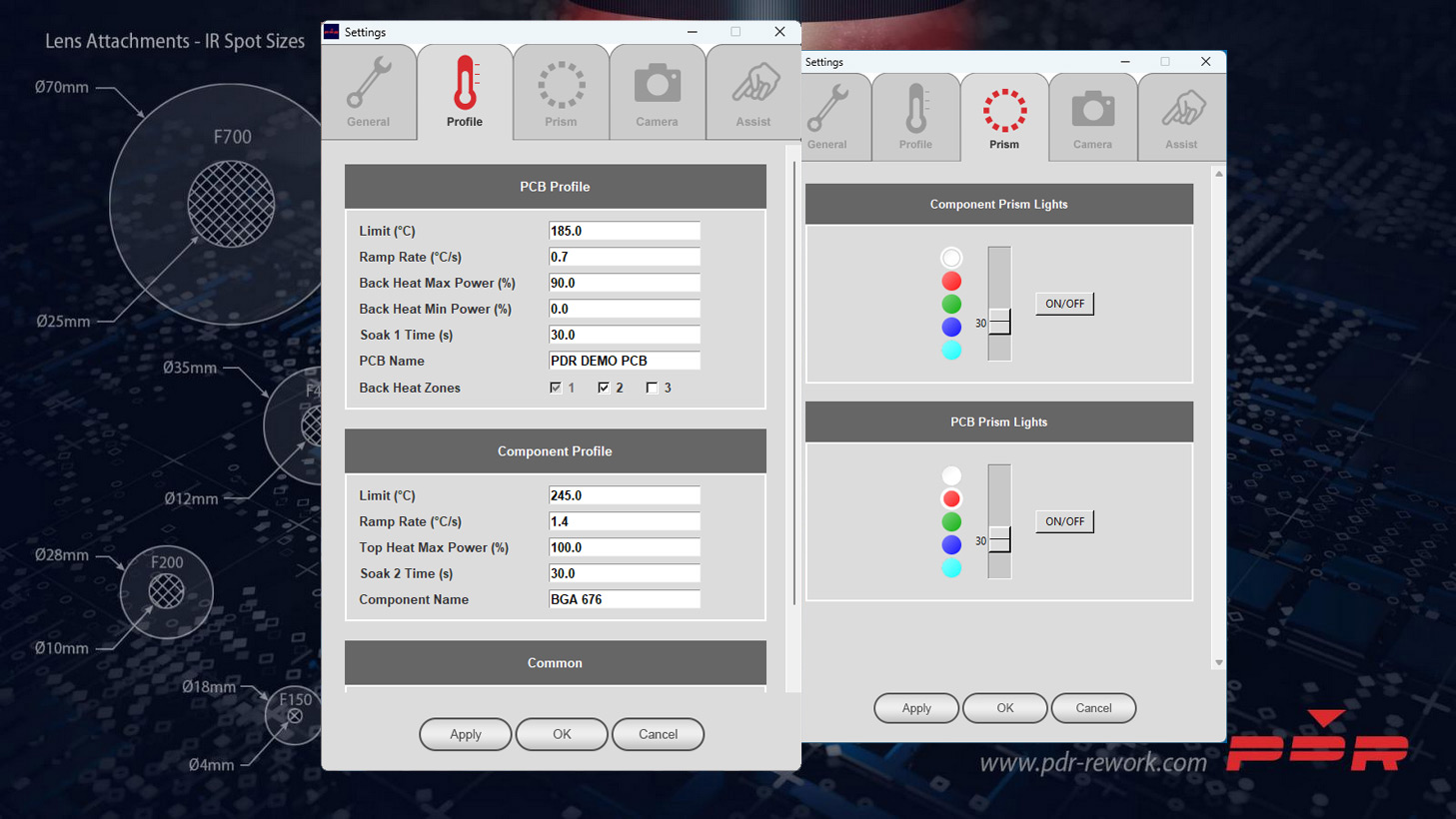

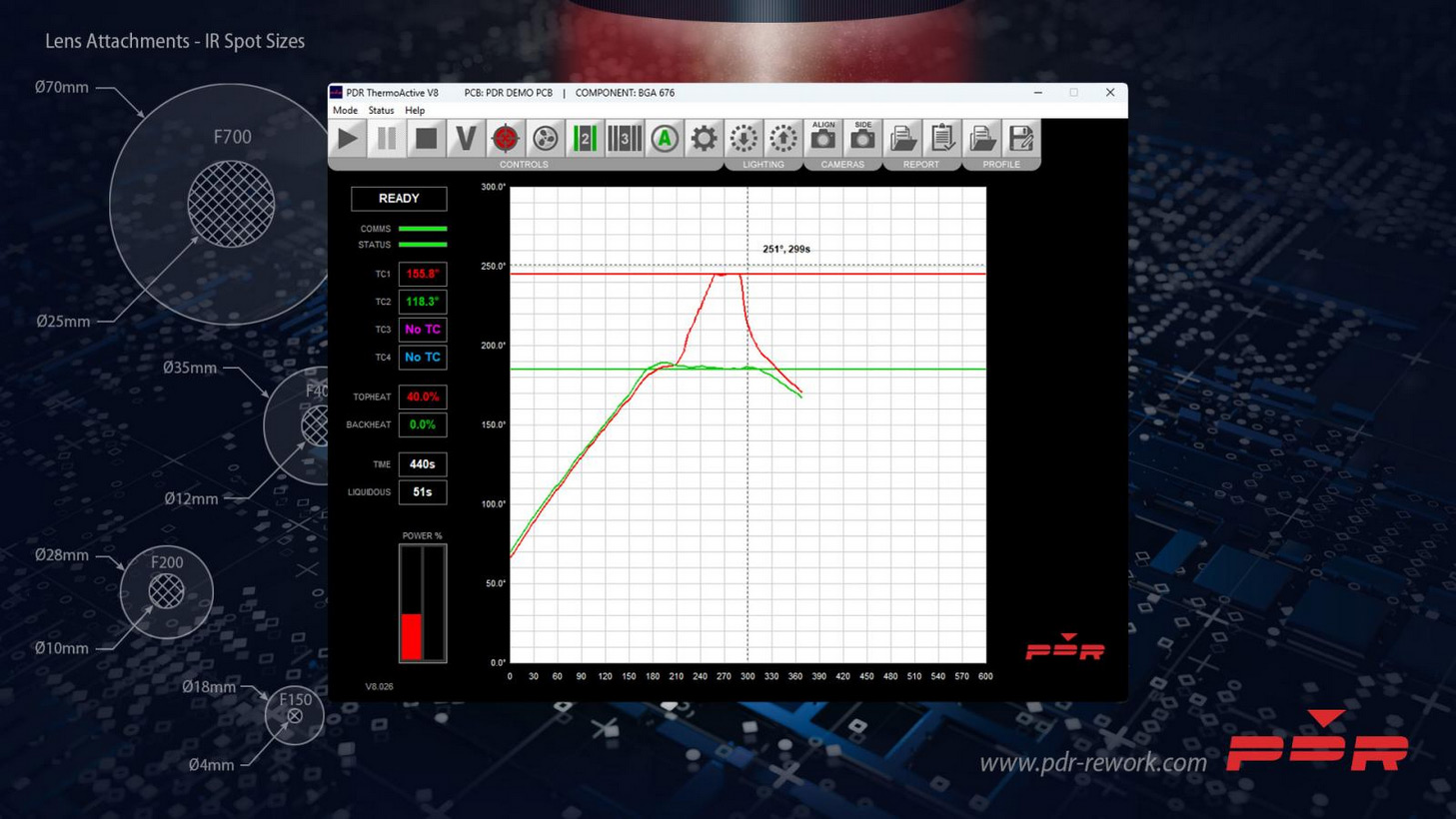

Operating Software: PDR’s Thermoactive Software Suite suitable for Windows 8 and Windows 10

Applications

Desoldering, placement and soldering of all types of surface mounted devices (SMD) BGA, QFN, LED, CSP, 0201, 01005

Accessories

PDR Lens Attachments

AC-F150	F150 (Ø4 - 18mm spot size)
AC-F200	F200 (Ø10 - 28mm spot size)
AC-F400	F400 (Ø12 - 35mm spot size)

Other

SP06009	Board Support Assembly + Shaft (for standard workholder)
SP05016	PCB IR Sensor - CS Type (Ø 7-12mm spotsize)
