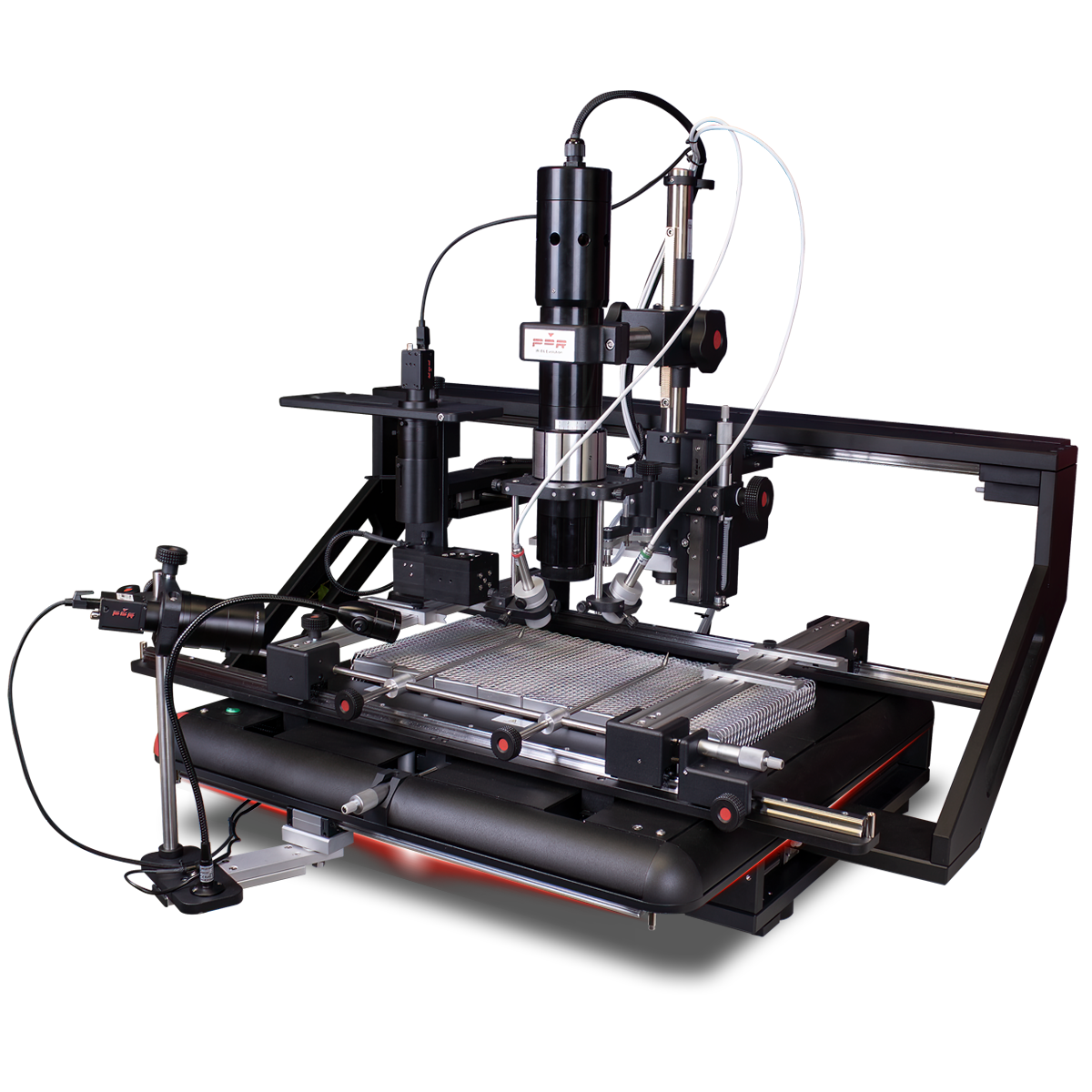

PDR IR-E6

BGA/SMT Rework Station for XL PCBs

Gantry Mounted Advanced Focused IR component heating
Large Quartz IR PCB preheating with 3 zones
24”/620mm PCB Capacity
Split Beam prism system for simultaneous PCB/component viewing
Precision Components Pick and Placement up to 10um
Precision PCB handling
Component Nest/Flux Application Facility
Closed Loop Non-Contact Temperature Sensing
Advanced Automatic Thermal Process Control
Reflow Process Observation Camera
PCB Forced Air Cooling

Request A Quotation

Technical Data

Bench Area: 2000mm (w) x 1000mm (d)
Weight: 100kg
Warranty: 2 years
Voltage Frequency: 208-240 volts 50/60Hz, up to 3KW
Top Heater Power: 150W Focused Infrared up to Ø70mm Spot
PCB Preheater Power: 3200W Dark IR
PCB Preheater Heating Area Size: 500x240mm
Number of PCB Preheater Zones: 3 Zones
Spot Size Included: F700 (Ø 25-70mm), F200 (Ø10-28mm)
Component Placement: Split Beam Prism Alignment
Placement Accuracy: Up to 10um
Component Temperature Sensing: Non-Contact IR Sensor
PCB Temperature Sensing: Non-Contact IR Sensor
Max PCB Size: 24”/620mm
Max Component Size: 55x55mm
Min Component Size: 01005
Number of TC Channels: 4
Operating Software: PDR’s Thermoactive Software Suite suitable for Windows 8 and Windows 10

Applications

Desoldering, placement and soldering of all types of surface-mounted devices (SMD)
BGA, QFN, LED, CSP, 0201, 01005

Accessories

PDR Lens Attachments

AC-F150	F150 (Ø4 - 18mm spot size)
AC-F400	F400 (Ø12 - 35mm spot size)

PDR Micro Component Kit

UGMC01	PDR Micro Component Kit (F150 lens attachment, low profile pickup head, SP03031:SP03030:SP03049 pick-up tips)
UGMC02	PDR Micro Component Camera Kit (120x Zoom lens, Plate and Camera)

Spares Kits

AC02009	Consumables kit (lamp+socket, gel flux, roll 25mm black tape, vac cup, springs, O rings)
AC02008	Consumables kit (lamp+socket, gel flux x 2, roll 25mm black tape, vac cup, springs, O rings, Lens No1, Cold Mirror)

Solderpaste Print Part System

PDRPP01	PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
PDRPP02	PDR BGA Reball Additional Component Set

PDR Reball Kit

PDRRB01	PDR BGA Reball Set (BGA foil & frame, paste foil & frame, hi-temp esd nest, squeegee blade)
PDRB02	PDR BGA Reball Additional Component Set

Other

SP05029	Laser Alignment Tool
SC020	Controller & Sensor Calibration Check Kit
UGBHHP	Hotplate - 270mm x 125mm - 700w - 208/240V ac
UGBHHP2	Hotplate - 150mm x 125mm - 350w - 208/240V ac
SP05017	PCB Sensor Contact Probe

FAQs

Why is it called Focused Infrared and how is it different from normal IR?

Is PDR's IR Technology Safe? Do we need eye protection?

Will the IR beam burn my fingers?

How does PDR's Focused IR work?

What are the advantages of PDR's focused IR over a Convection Rework System?

How long does a system typically last?

What is the largest BGA a PDR Rework system can handle?

What are the smallest components a PDR Rework system can handle?

Can you rework reflective components with Focused IR?

Why is the PDR Top Heater rated at only 150w?

What are Lens Attachments and what size do I need?

Will close adjacent parts reflow?

What is the smallest PCB you can rework?

What is the Max size PCB a PDR Rework system can handle?

What is the maximum PCB thickness?

How long does an IR Bulb Last?

What pickup tips are available with a PDR Rework system?
